Press Fittings
THE PRESS FITTINGS – THE BASIC RANGE
The metal press fittings are the basic connection of the entire MULTITUBO systems range. The extensive range covers a wide range of dimensions and offers many special parts.
The PPSU press fittings complement the range with an economical option to make floor distribution even more economical.
For commercial installations, the MODULAR press fitting range extends the dimensions up to 110 mm. This range also makes handling large dimensions much easier, especially when working overhead.
- Large dimension range from 16 mm to 110 mm

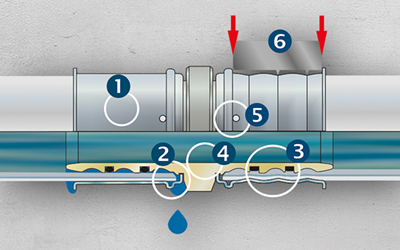

- U-contour for a secure and proven connection
- Permanently tight connection with O-rings
- Press sleeves made of stainless steel
- Viewing window for easy checking of the pipe insertion depth
METAL PRESS FITTINGS
16MM – 75MM
PPSU-PRESSFITTINGE
16 MM – 63 MM
MODULAR-PRESSFITTINGE
25 MM – 110 MM

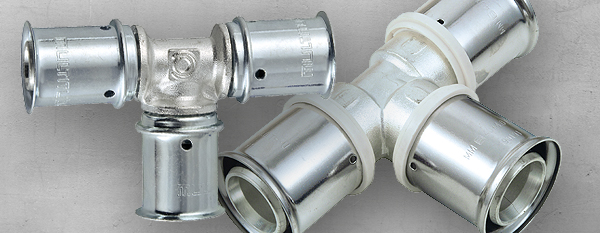

The fitting body is made of tin-plated brass according to the UBA safety list. The large range depth also makes many other applications possible without any problems, such as pipe laying without crossing, connecting concealed cisterns and connecting skirting boards.
The fitting base body is made of the technical high-performance plastic PPSU. It is characterized by high impact strength, food suitability and high temperature resistance. The profile is adapted to the material and differs from that of the metal press fitting.
The fitting base body of the adapter is made of tin-plated brass, the molded parts and press sleeves are made of stainless steel. This makes the larger fittings lighter and easier to handle. This is particularly useful when working overhead, because the adapters pressed on the workbench are connected on site with a clamp and seal.
METAL PRESS FITTINGS
16MM – 32MM
